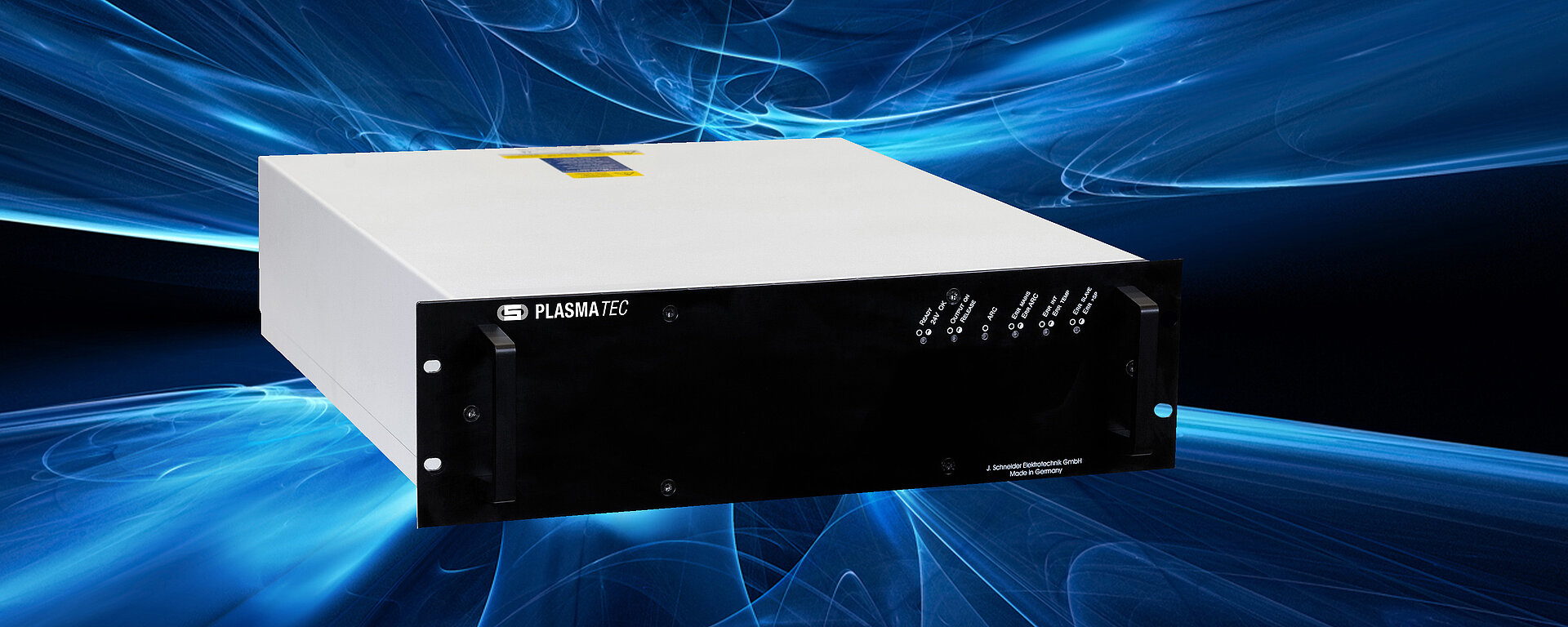

Power Supply for defect-free coating

The PLASMATEC-Series is a highly reliable, primary switch-mode power supply product line. It reveals improved process technology for thin film plasma applications. With this state of the art water-cooled power supplies J. Schneider offers different application dedicated systems for vacuum process technologies.



PLASMATEC advantages at a glance:



  • Current source power supplies for best arc handling
  • Most sophisticated, flexible and adjustable arc management with extremely low passive output energy and a high output power density
  • Available in a wide output power range from 3 to 20 kW
  • Output power up to 200 kW in parallel connections

Our Product Portfolio

For Magnetron-Sputter-coating, PECVD processes and plasma treatment

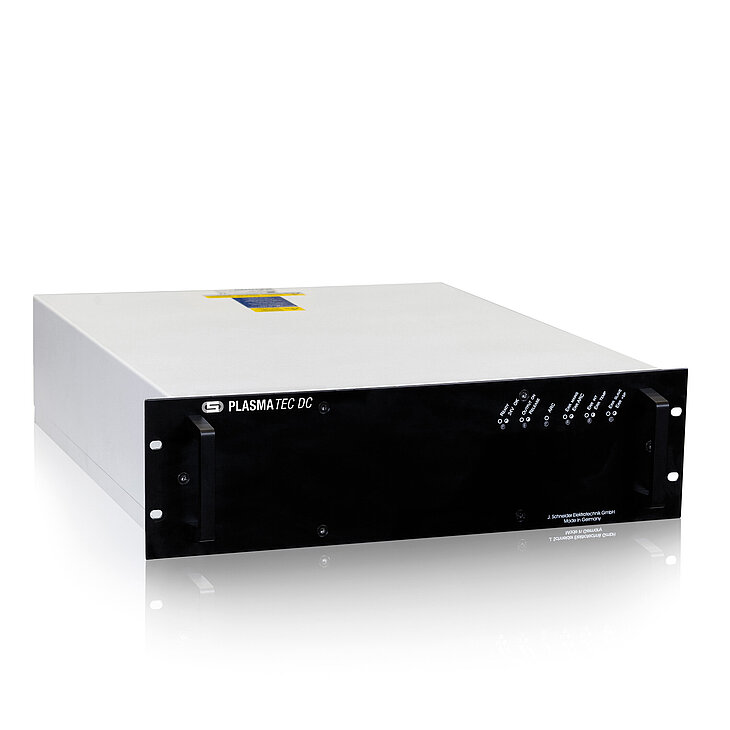

PLASMATEC DC
  • IDEAL FOR DECORATIVE OR FUNCTIONAL COATING

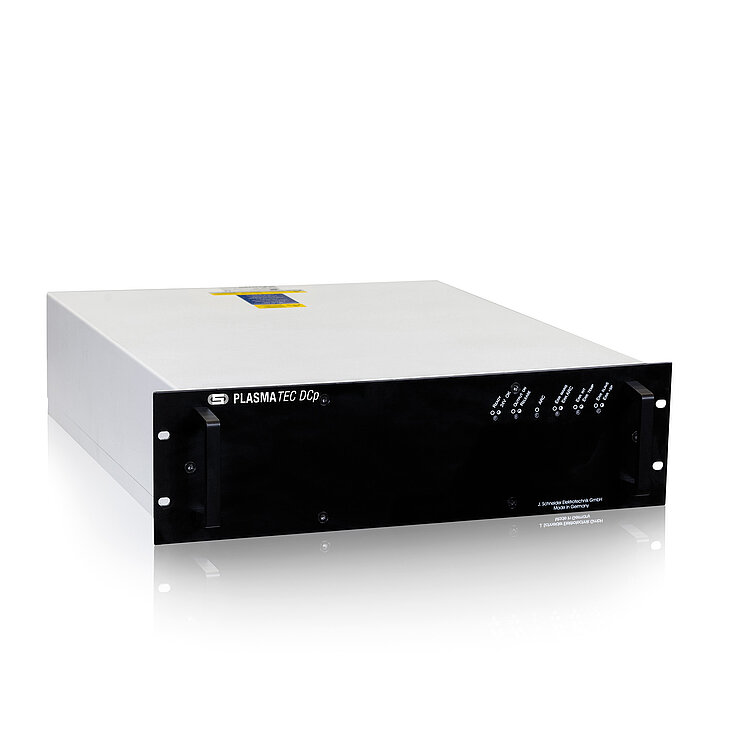

PLASMATEC DCp
  • IDEAL FÜR ANWENDUNGEN BEIM EINZELMAGNETRON SPUTTERN
PLASMATEC Ap
  • ADJUSTABLE POSITIVE PULSES FOR ENHANCED COATING PROPERTIES

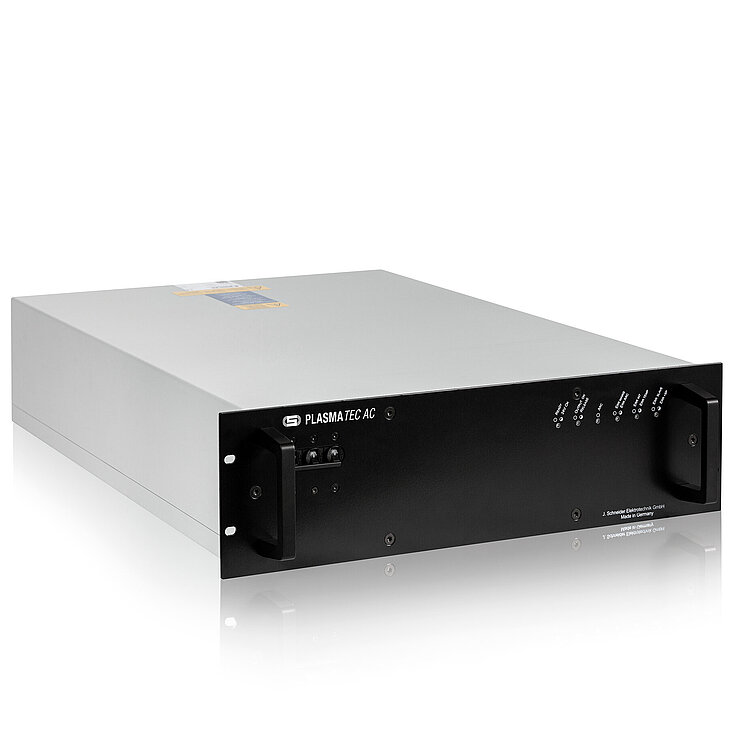

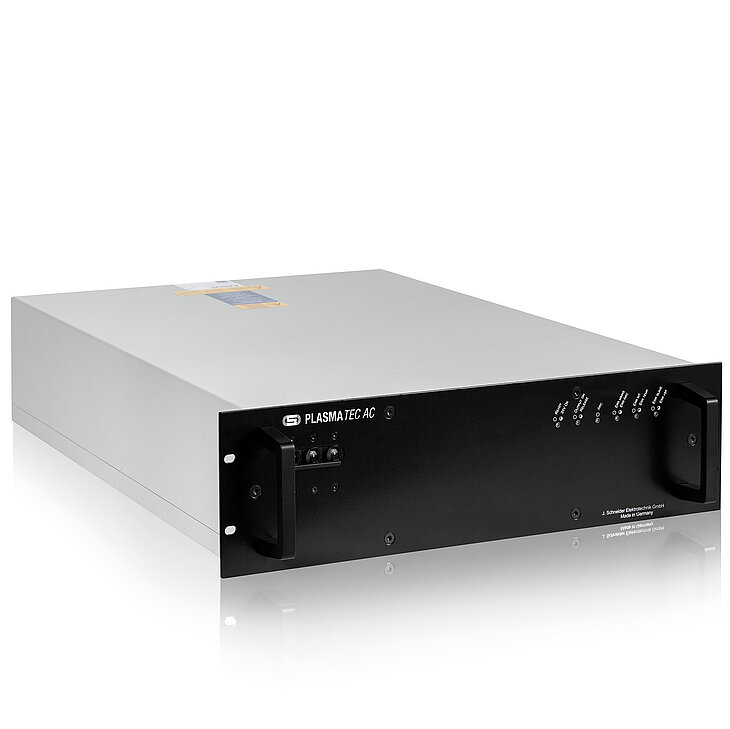

PLASMATEC AC
  • ESPECIALLY SUITALBE FOR DUAL MAGNETRON APPLICATIONS

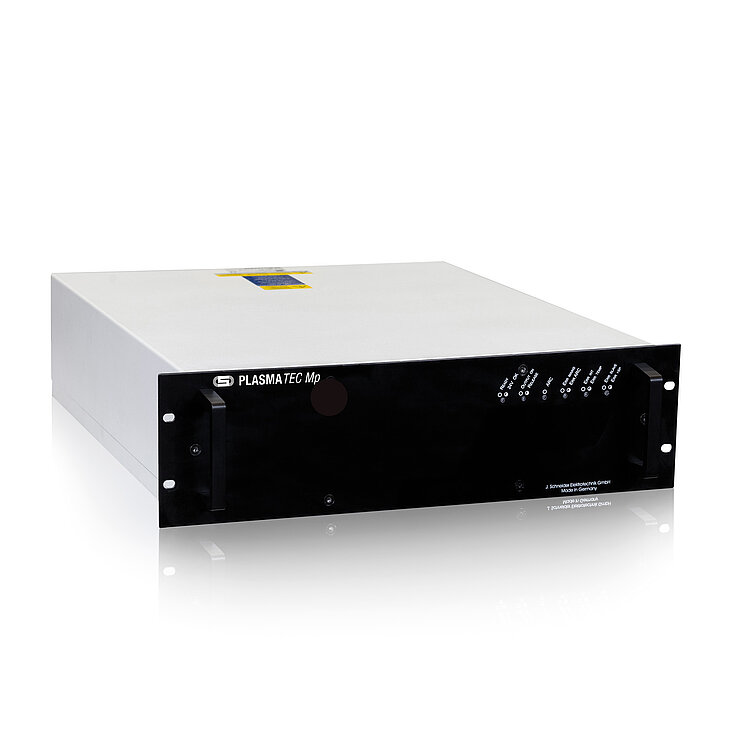

PLASMATEC Mp
  • EXTREMELY FLEXIBLE WITH
  • DC, UNIPOLAR OR BIPOLAR PULSED OUTPUT

For pulsed, cathodic arc processing

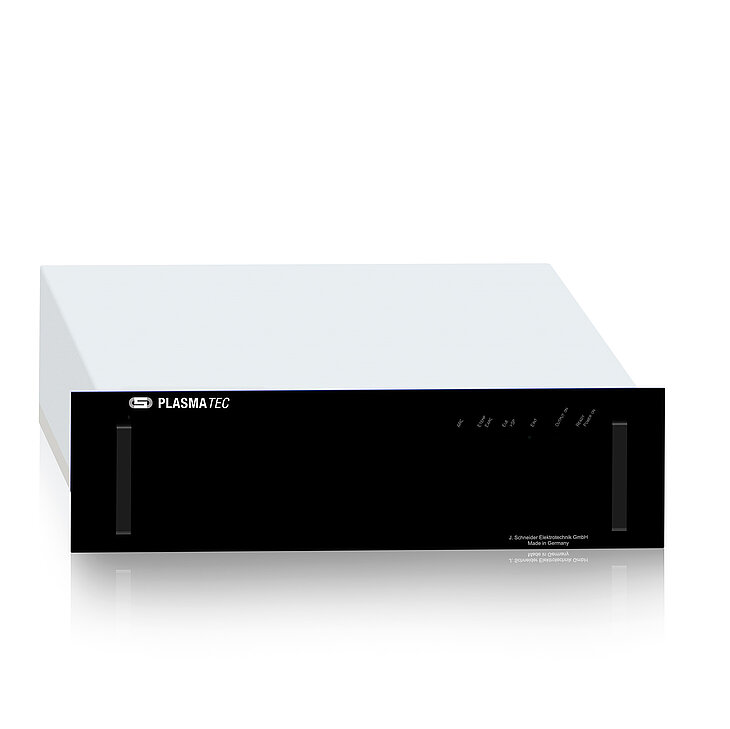

PLASMATEC BIAS
  • DC, UNIPOLAR OR BIPOLAR PULSED

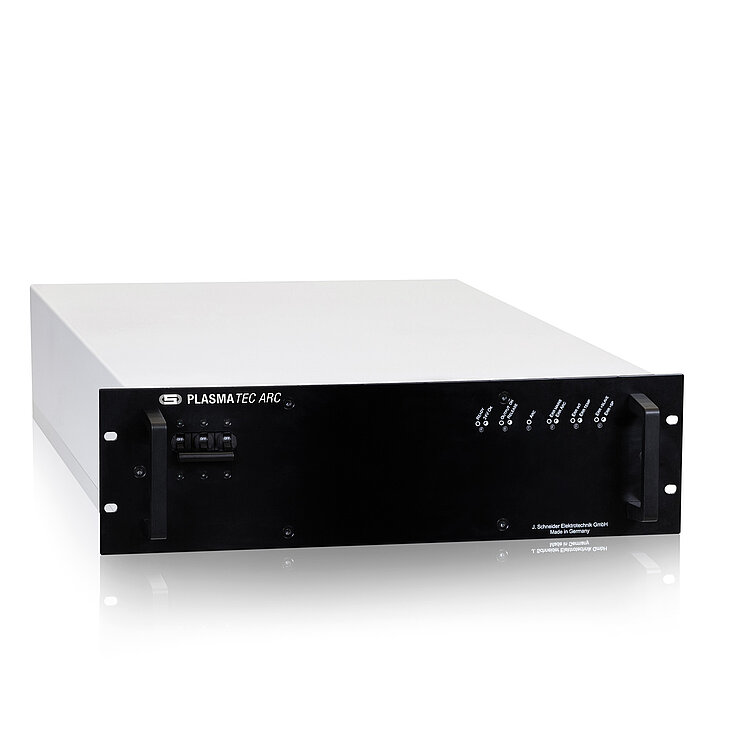

PLASMATEC ARC
  • PULSED, CATHODISCHEC ARC SUPPLY

Options

PLASMATEC Options

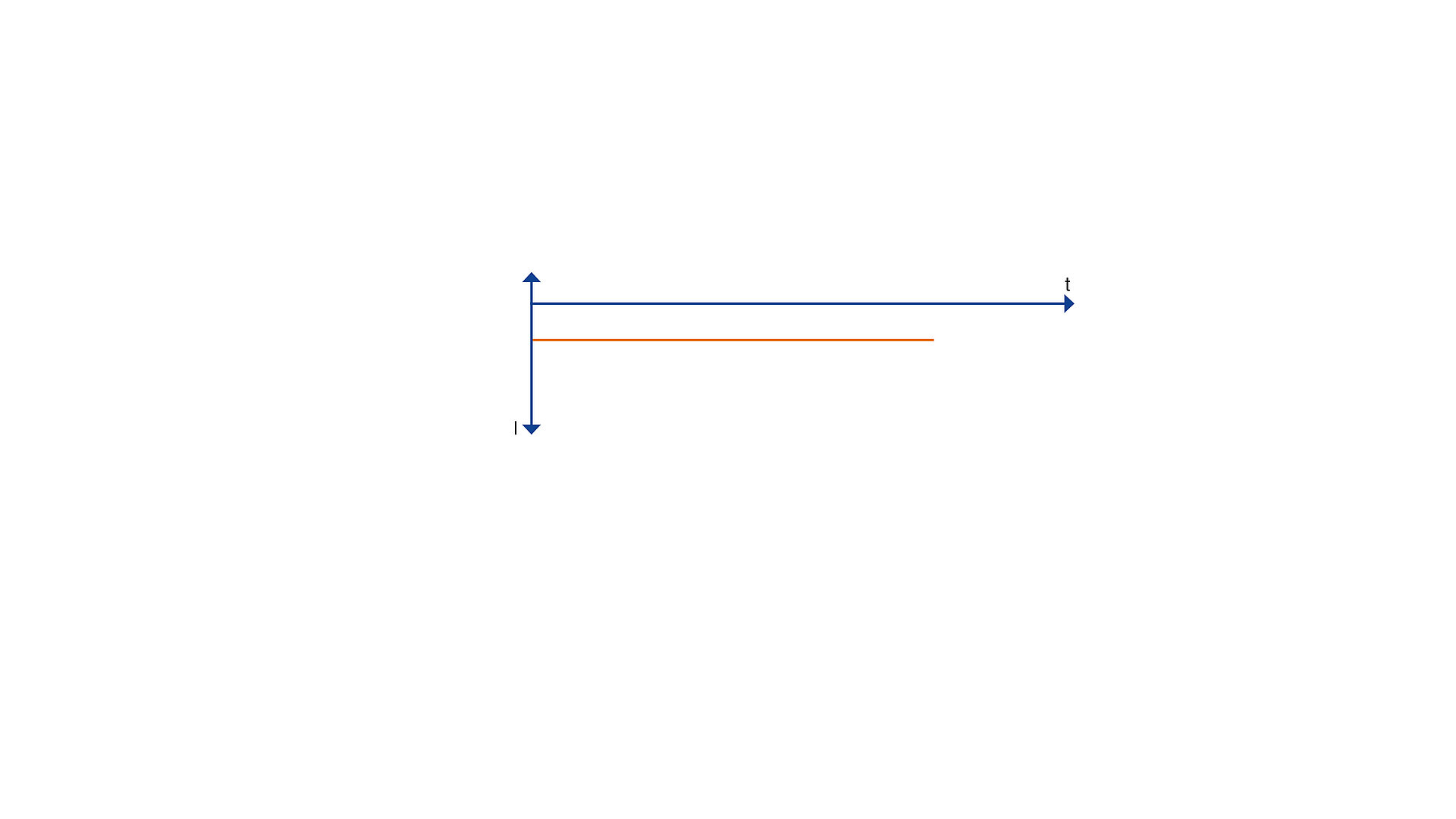

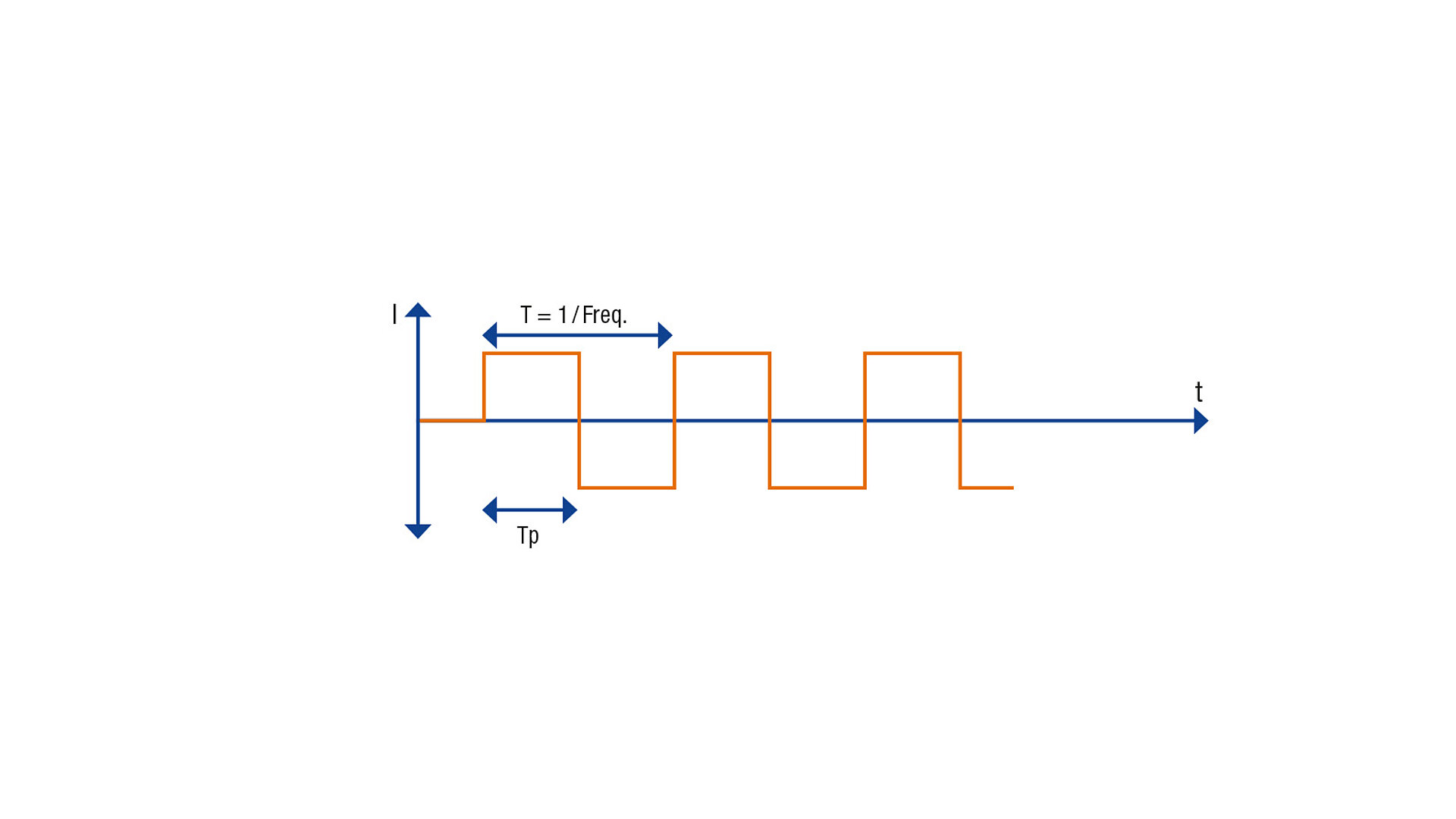

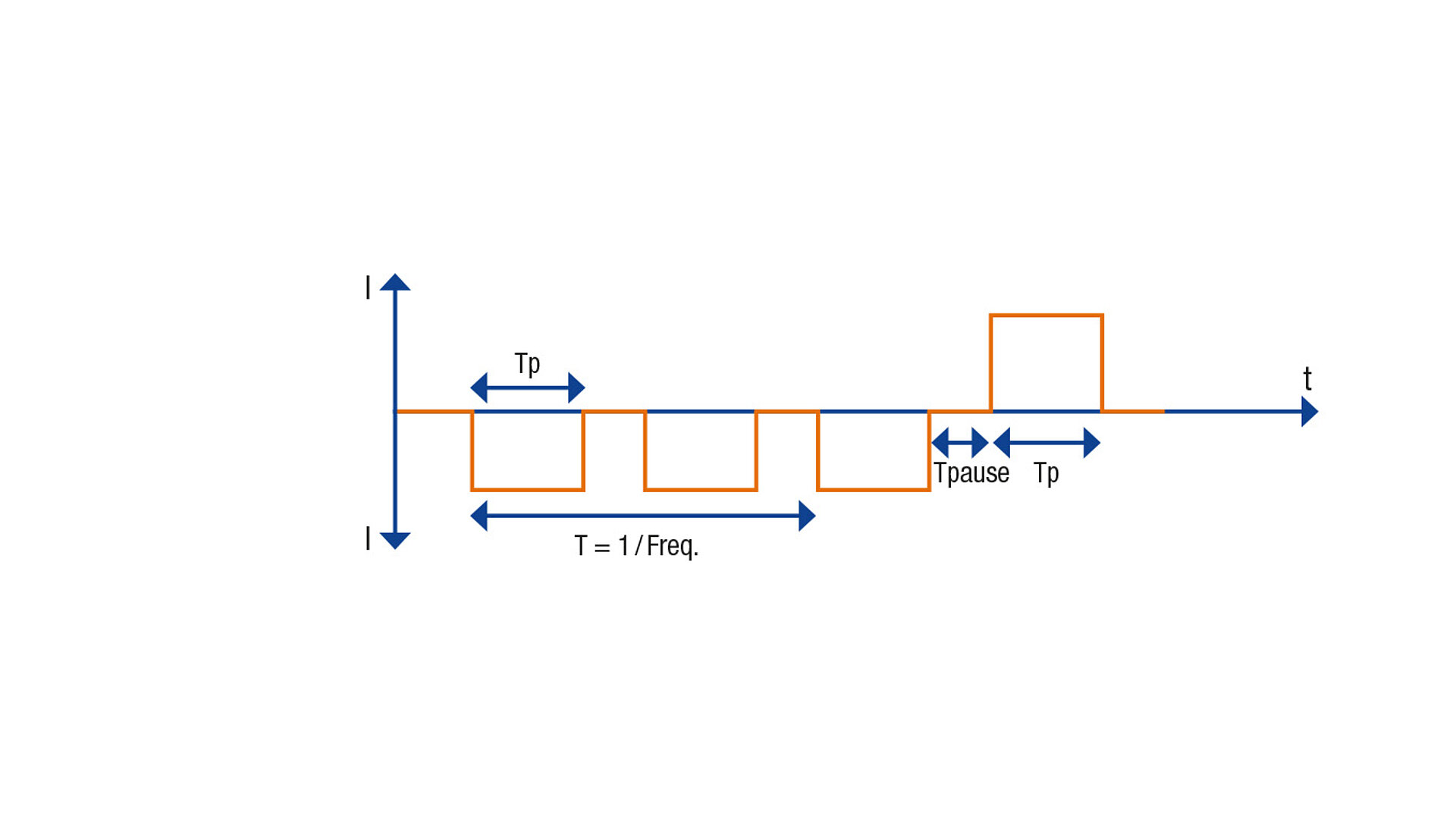

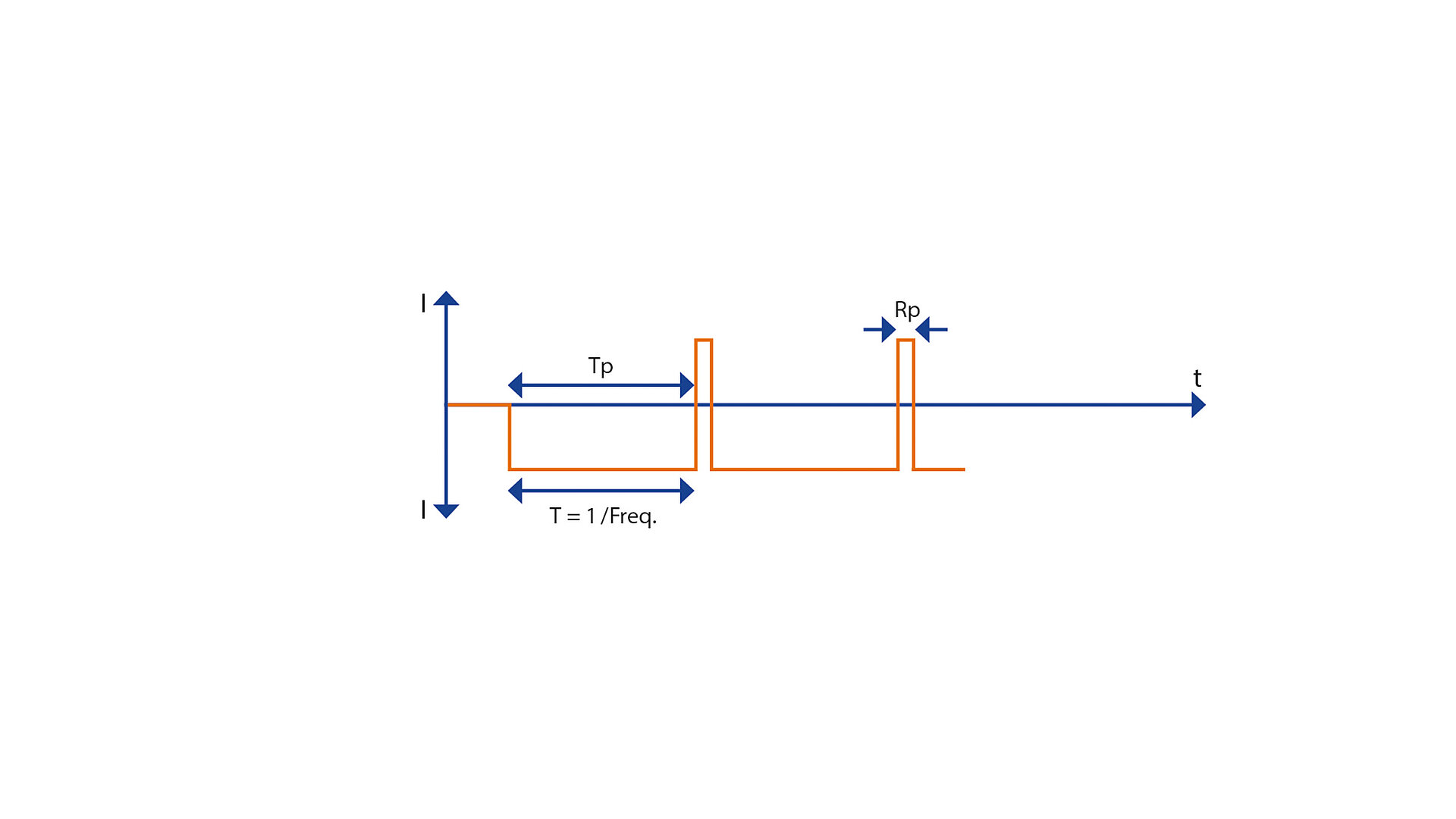

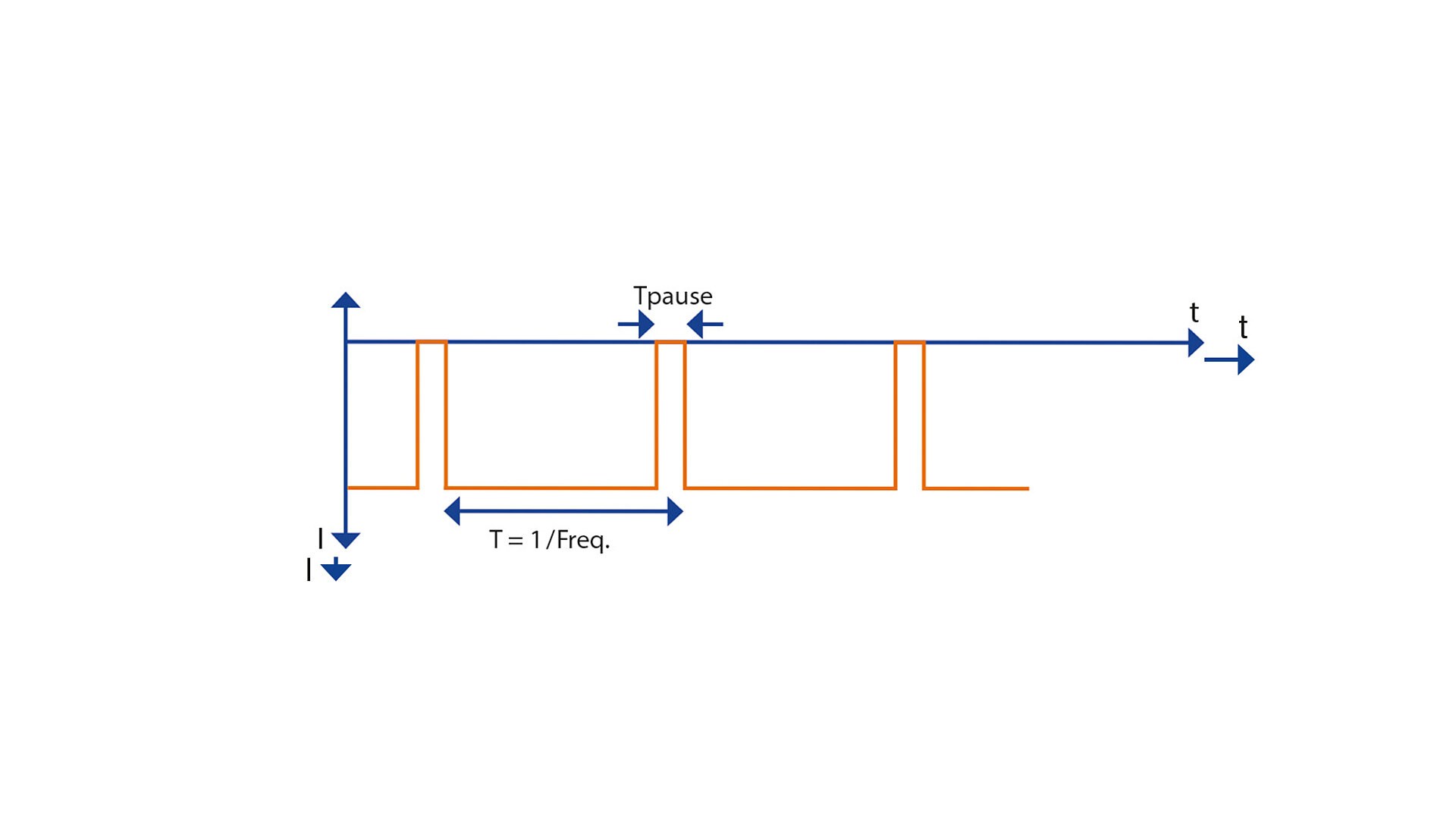

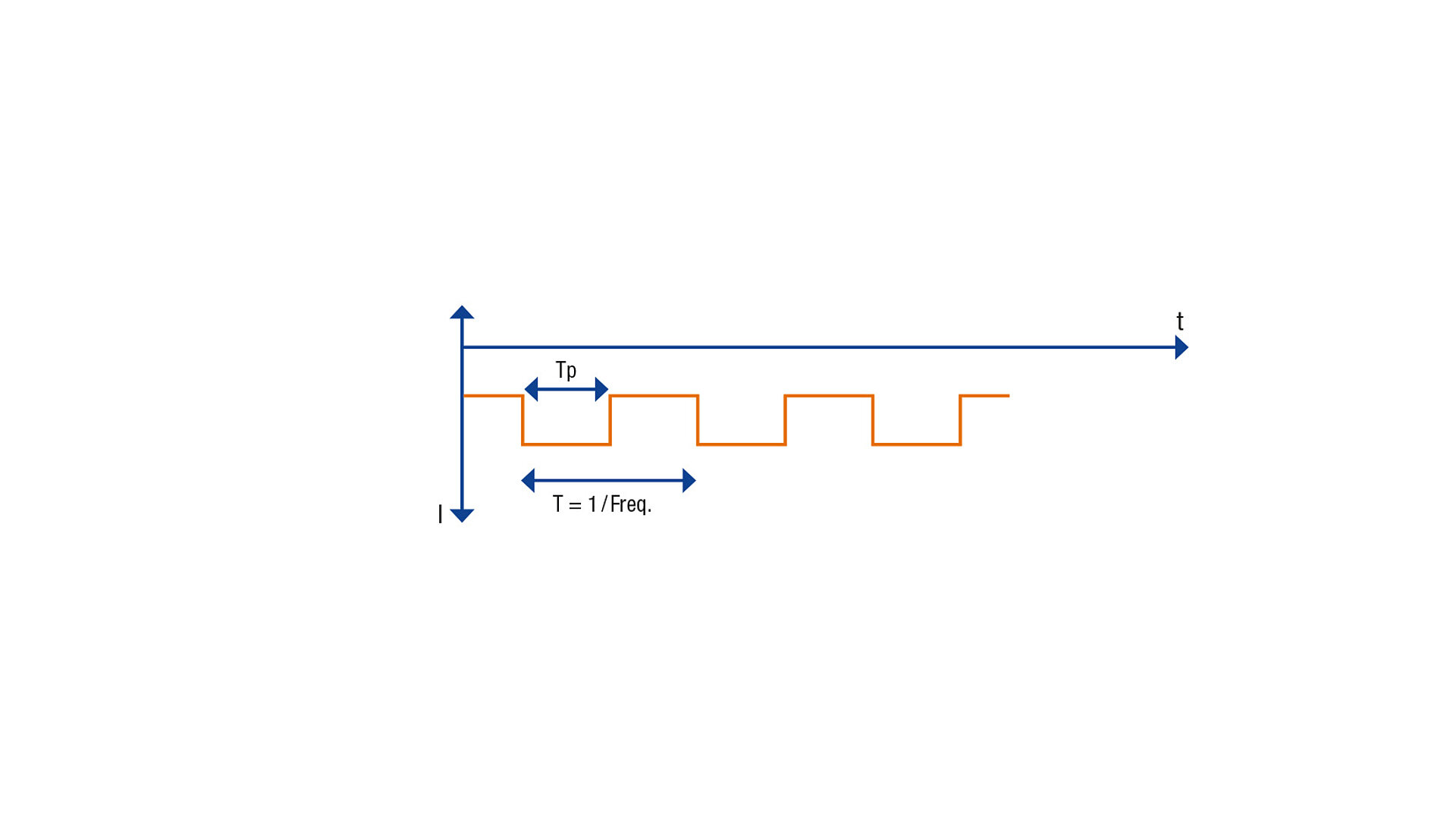

THE SHAPE OF THE OUTPUT VOLTAGE IS WHAT MATTERS!

Possible with:

PLASMATEC DC

PLASMATEC DCp

PLASMATEC Mp

PLASMATEC ARC

PLASMATEC BIAS



Possible with:

PLASMATEC ARC



Possible with:

PLASMATEC DCp

PLASMATEC Ap

PLASMATEC Mp

PLASMATEC ARC

PLASMATEC BIAS



Possible with:

PLASMATEC AC

PLASMATEC Mp

PLASMATEC BIAS





Possible with:

PLASMATEC Ap

PLASMATEC BIAS









Possible with:

PLASMATEC Mp
