Technical Data
| Nominal input voltage | 110 - 240 V AC +/- 10 % |
| Frequency | 50/60 Hz |
| Nominal output voltage / Nominal output current | 12 V DC / 20 A |
| Dimensions (H x W x D) | 241x101x234 mm |
| Weight | 2,9 kg |

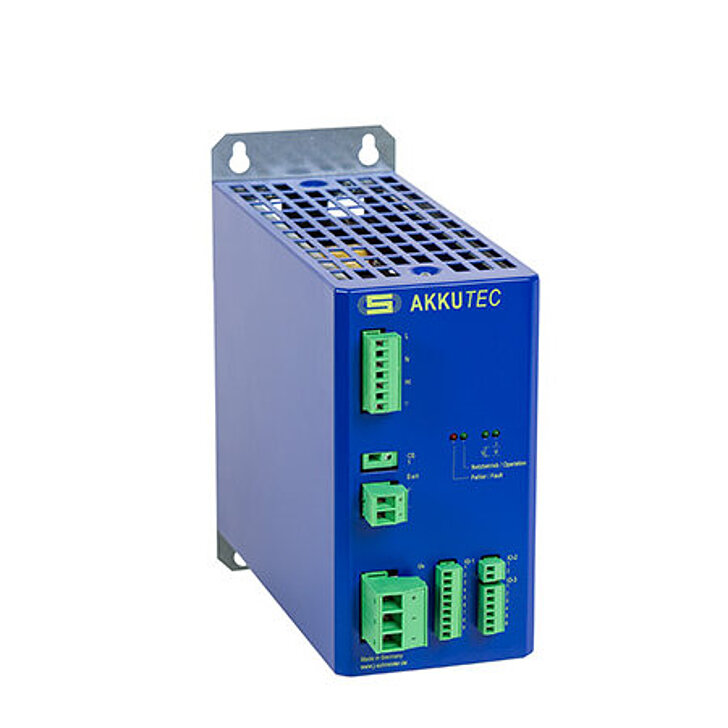

AKKUTEC 1220
- Primary switched mode power supply with I/U-charging characteristics
- Active power factor correction (PFC)
- Microcontroller-supported battery management
- Temperature tracking of the charging voltage by external sensor module (optional module)
- Signal and control panel for control cabinet door mounting or surface mounting (Option)
Art.-no. : NBPA0347G01002
