Technical Data
| Mains voltage | 100 V AC - 130 V AC / 210 V AC - 240 V AC |
| Frequency | 50 / 60 Hz ±3 Hz |
| Nominal output voltage / Nominal output current | 24 V DC (SELV / PELV) / 12A |
| Dimensions (H x W x D) | 154 x 94 x 171 mm |
| Weight | 1,5 kg |

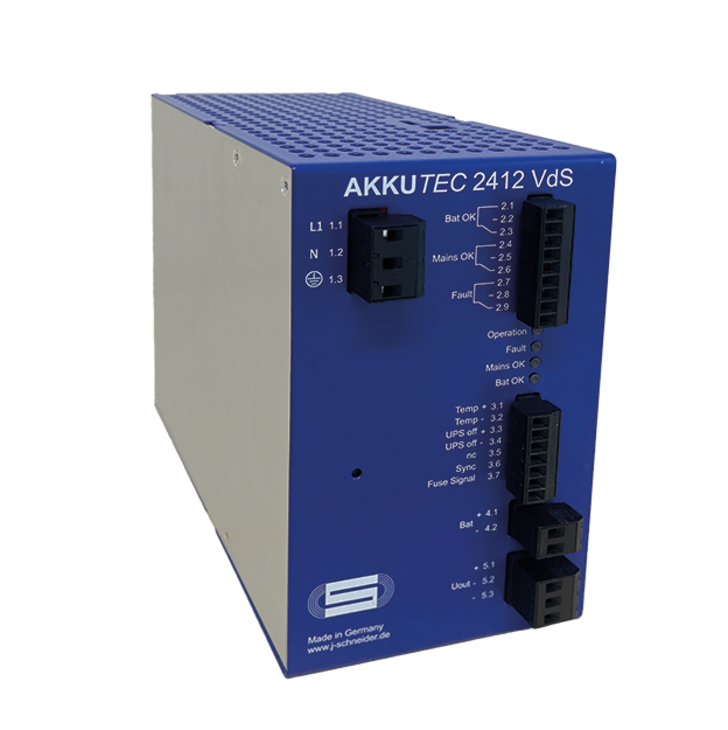

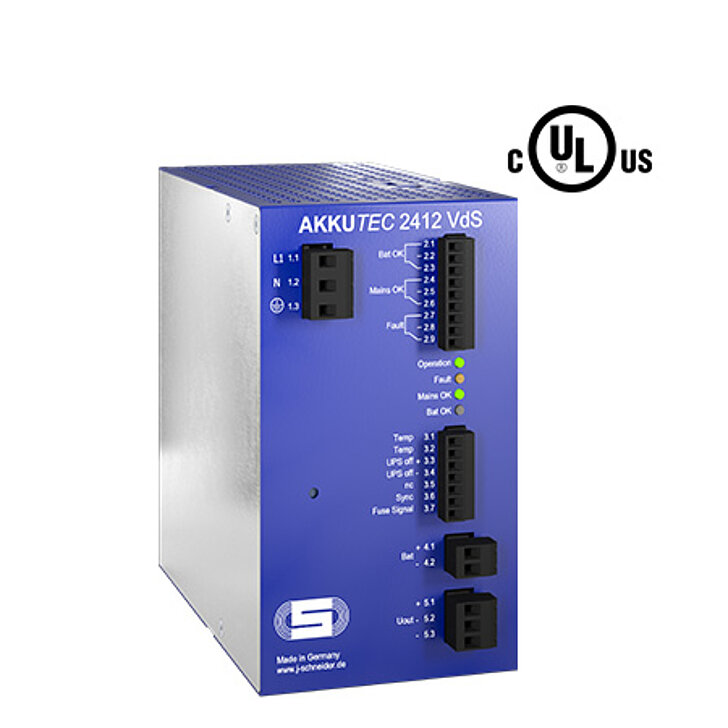

AKKUTEC 2412 VdS
- Primary clocked switching power supply with I/U loading characteristic
- Active power factor correction (PFC)
- Micro-controller supported battery management
- Temperature adjustment of the charging voltage by external sensor
- Battery test via battery internal resistance measurement
Art.-no. : NBPA2015G10***
