Technical Data
| Nominal input voltage | 230 V AC (±15%) |
| Nominal frequency | 47 ... 63 Hz |
| Nominal output voltage (in mains operation) / Nominal output current | 48 V DC / 6 A |
| Dimensions (H x W x D) | 155 mm, 95 mm, 183 mm |
| Weight | 1,5 Kg |

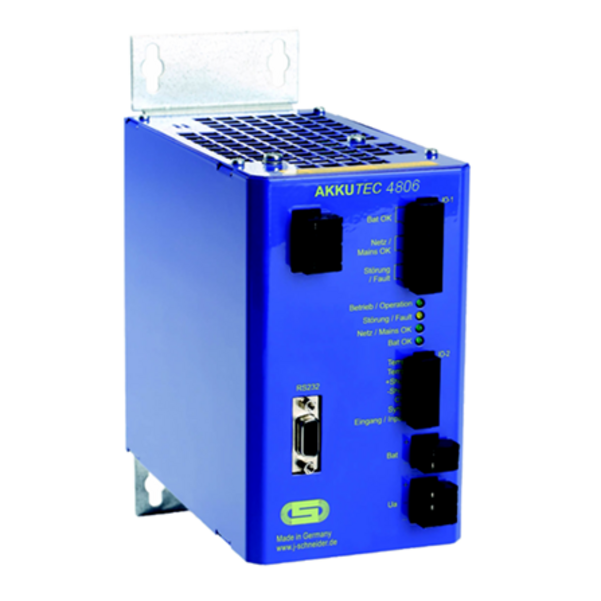

AKKUTEC 4806
- Switching power supply with I/U charging characteristic
- Active power factor correction (PFC)
- Micro-controller supported lead accumulator management
- RS232 for monitoring and parameterization
- Temperature adjustment of the charging voltage by an external sensor
- The battery test is carried out by measuring the internal resistance
Art.-no. : NBPA1630G01002
