Technical Data
| input voltage | 400 V AC ± 15 % |
| energy | 1 kJ |
| output voltage in back-up mode | 23,5 V DC ±2 % |
| nominal output current | 3 A |
| dimensions (h x w x d) | 152,5 x 100 x 130 mm |
| weight | 1,2 kg |

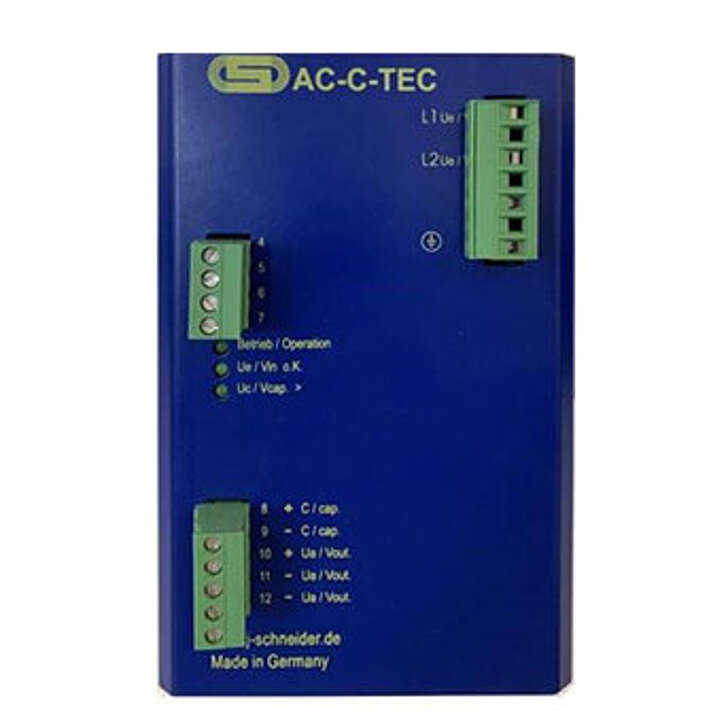

AC C-TEC 2403-1-400
Maintenance-free due to long-life ultracapacitors
Low wiring effort due to the integration of power supply unit and energy storage device
Microcontroller-supported charging and discharging of the ultracapacitors
Operating and charging status monitoring via potential-free contacts and LEDs
Wide temperature range -40 °C to 60 °C
Art.-no. : NCPA0724G01020
