Technical Data
| energy | 8 kJ |
| nominal input voltage | 400 V AC -15% / 500 V AC +10% |
| output voltage in back-up mode | 23,2 V DC ± 2,0 % |
| nominal output current | 20 A DC |
| dimensions (h x w x d) | 192,5 x 170 x 198 mm |
| weight | 3,5 kg |

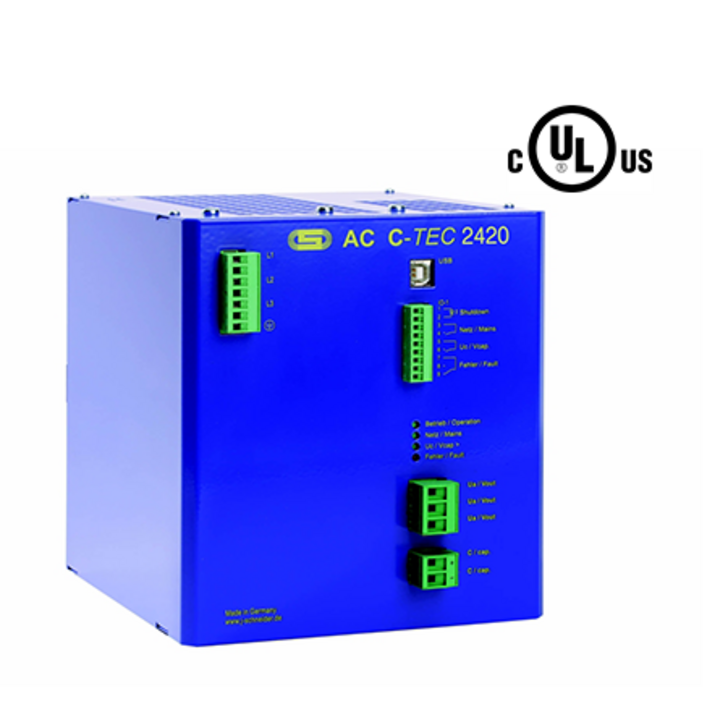

AC C-TEC 2420 8 kJ
Maintenance-free due to long-life ultracapacitors
Low wiring effort due to the integration of the energy storage
Microcontroller-supported charging and discharging of the ultracapacitors
Mains monitoring via potential-free contact and LED
Vibration-proof wiring due to spring-loaded technology
Wide temperature range -40 °C to 60 °C
Art.-no. : NCPA0746G01003
