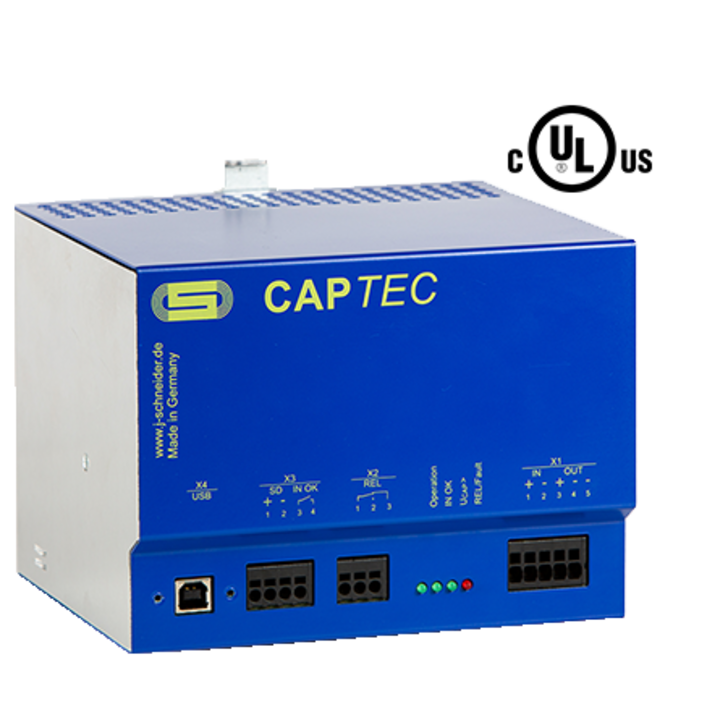

CAPTEC 2410

Maintenance-free because of long-life ultra-capacitors
Microcontroller based charging and discharging of the ultra-capacitors
Parameterizable via USB interface with the TECControl-Software
Control of operation and status of charge with LED’s and signal contacts

Art.-no. : NCPA1905G01001

Technical Data

Energy 14 kJ
input voltage 12 V DC / 24 V DC ± 12,5% automatische Erkennung
output voltage in back-up model 11,2 V DC ±4 % / 23,0 V DC ±2 %
nominal output current 10 A
dimensions (H x B x T) 141 x 165 x 167
weight 2,0 kg
