UPS batteries from J. Schneider Elektrotechnik - J.Schneider

Battery Life Duration 6-9 years

Can be installed in any position (but not upside down)
Impact- and break-proof plastic housing made of ABS
Valve-regulated construction, almost 100% oxygen recombination during each charging process
Electrolyte bound in glass fibre fleece
No refilling of electrolyte necessary
Corrosion-resistant high-performance grid plates with lead-calcium alloy
Wide operating temperature range with corresponding temperature-dependent voltage compensation
Very good charging efficiency
No dangerous goods according to IATA
Conforms to EN 61056-2
Long life with low self-discharge
3% per month at 20°C

Art.-no. : 452011.xx

name	SB 1.2-12
article number	452011.47
VdS number	G112062
nominal voltage	12 V
capacity	1,2 Ah
dimensions (H x B x T) mm / weight (kg)	59 x 97 x 43 mm / 0,85 kg

name	SBV 2.2-12
article number	452011.20
VdS number	G110047
nominal voltage	12 V
capacity	2,2 Ah
dimensions (H x B x T) mm / weight (kg)	67 x 178 x 35 mm / 1,05 kg

name	SBV 7-12
article number	452011.36
VdS number	G108004
nominal voltage	12 V
capacity	7 Ah
dimensions (H x B x T) mm / weight (kg)	94 x 151 x 65 mm / 2,65 kg

name	SBV 12-12
article number	452011.22
VdS number	G108005
nominal voltage	12 V
capacity	12 Ah
dimensions (H x B x T) mm / weight (kg)	94 x 98 x 151 mm / 4,1 kg

name	SBV 17-12
article number	452011.2
VdS number	G108006
nominal voltage	12 V
capacity	17 Ah
dimensions (H x B x T) mm / weight (kg)	167 x 76 x 181 mm / 6,1 kg

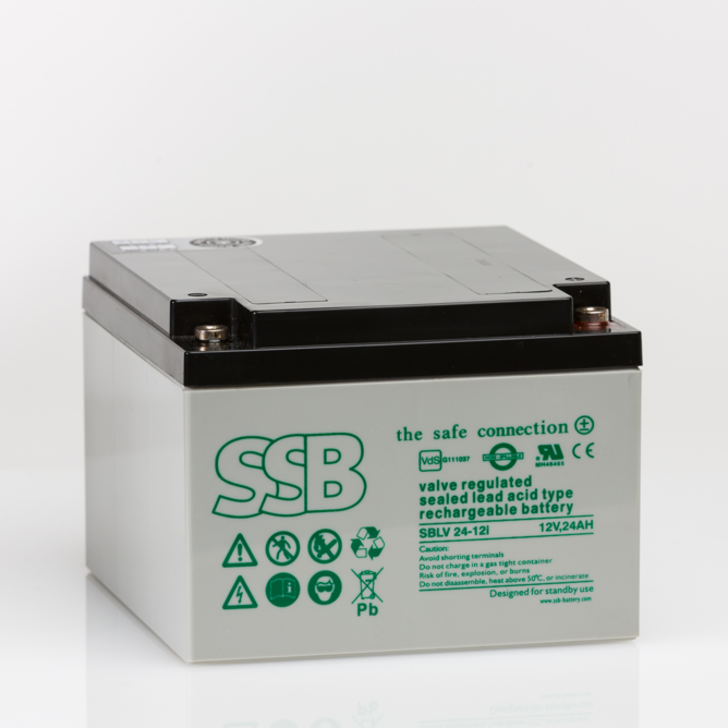

name	SBV 24-12
article number	452011.4
VdS number	G108007
nominal voltage	12 V
capacity	24 Ah
dimensions (H x B x T) mm / weight (kg)	125 x 175 x 166 mm / 7,8 kg

name	SBV 40-12
article number	452011.8
VdS number	G108008
nominal voltage	12 V
capacity	40 Ah
dimensions (H x B x T) mm / weight (kg)	197 x 165 x 170 mm / 15,7 kg

name	SB 45-12
article number	452011.xx
VdS number	G112060
nominal voltage	12 V
capacity	45 Ah
dimensions (h x w x d) mm / weight kg	197 x 165 x 170 mm / 15,7 kg

name	SBV 65-12
article number	452011.9
VdS number	G114035
nominal voltage	12 V
capacity	65 Ah
dimensions (H x B x T) mm / weight (kg)	174 x 166 x 350 mm / 24 kg
