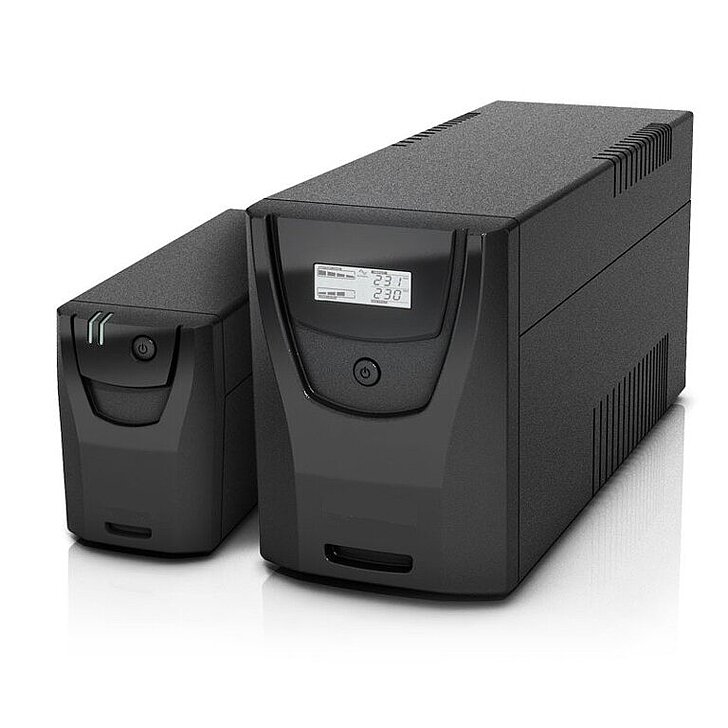

proLITE 400 - 800 U

Line-Interaktive UPS-system according to DIN EN 50091-3 (VI-SY-311)



- trapeze shaped output voltage in battery operation

- RS232 interface

- overvoltage protection connection for telephone or modem line

- Slot for communication cards

-  Shutdown-Software for Windows 95/98/NT/2000/XP, Linux and Novell system software



Especially suited for the protection of PCs and peripheral equipment, modems and DSL-Router

Art.-no. : proLITE

Technical Data

nominal input voltage 230 V AC
input frequency range 50 Hz or 60 Hz automatic recognition
output voltage 230 VAC
voltage at mains operation 230V (-14% / +9%) (198V – 251V)
voltage at battery operation 230V + 5%

Rating and back-up time of the proLITE 400 - 800 models

rating 400 VA 240 Watt
back-up time 4 minutes at 100 % load 12 minutes at 50 % load
dimensions (H x W x D) 152 x 110 x 325 mm
weight 6 kg
rating 400 VA 240 Watt
back-up time 2 minutes at 100 % load 8 minutes at 50 % load
dimensions (H x W x D) 152 x 110 x 325 mm
weight 6 kg
rating 600 VA 360 Watt
back-up time 3 minutes at 100 % load 9 minutes at 50 % load
dimensions (H x W x D) 152 x 110 x 325 mm
weight 7 kg
rating 800 VA 480 Watt
back-up time 2 minutes at 100 % load 8 minutes at 50 % load
dimensions (H x W x D) 152 x 110 x 325 mm
weight 7 kg
