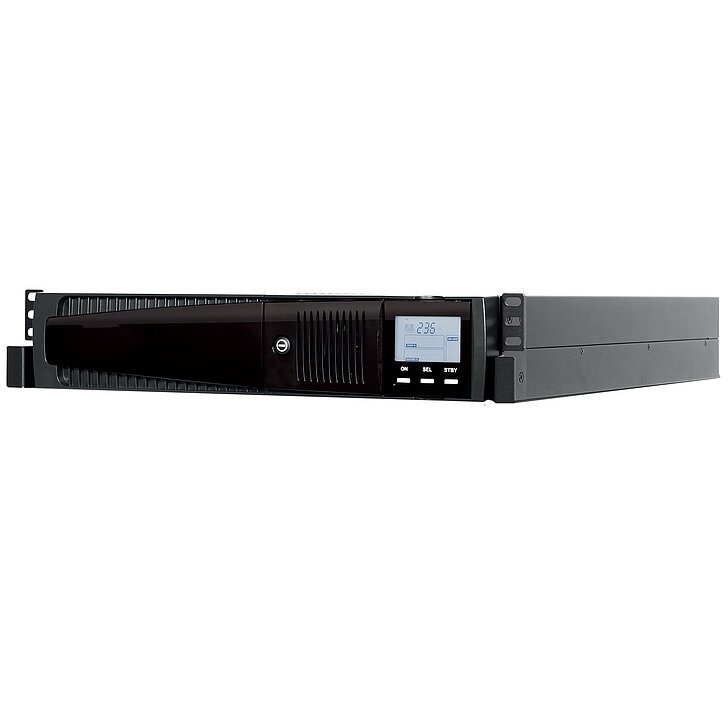

proSAFE 19" 500 - 1100

Line-Interactive UPS system according to IEC / EN 62040-3 (VI-SS-311)



- LCD display

- Sinus inverter

- RS232 and USB interface

- Slot for optional communication boards

- Powershare

- Hotswap for the battery

- overvoltage protection terminal for phone or network line

-  Shutdown-Software for Windows 95/98/NT/2000/XP, Linux and Novell system software



Art.-no. : 437046.xxx

Technical Data

nominal input voltage 230 V AC (selectable 220, 230, 240 V)
input frequency range 50 Hz or 60 Hz automatic recognition
output voltage 230 V AC (selectable 220, 230, 240 V)
waveform sinusoidal

Rating and back-up time of the proSAFE 19" 500 - 1100 VA models

rating 500 VA 350 Watt
back-up time 5 minutes at 100 % load 14 minutes at 50 % load
dimensions (H x W x D) 1 HE x 19“ x 460
weight 12 kg

proSAFE 19" 800

rating 800 VA 540 Watt
back-up time 5 minutes at 100 % load 14 minutes at 50 % load
dimensions (H x W x D) 1 HE x 19“ x 460
weight 14 kg
rating 1100 VA 740 Watt
back-up time 5 minutes at 100 % load 14 minutes at 50 % load
dimensions (H x W x D) 1 HE x 19“ x 460
weight 14 kg
