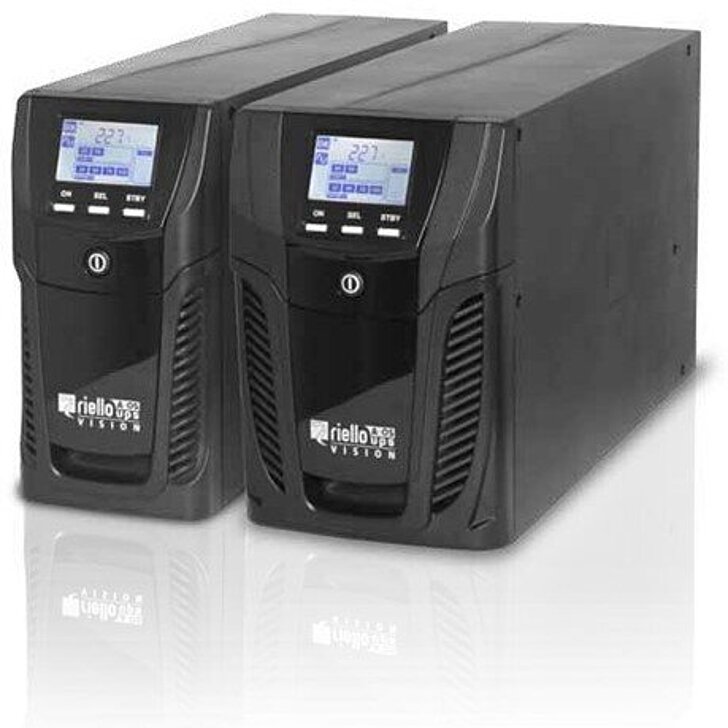

proSAFE 800 - 2000

Line-Interactive UPS system according to DIN EN 50091-3 (VI-SY-311)



- LCD display

- sinus inverter

- RS232 and USB interface

- slot for optional communication boards

- Powershare

- hotswap for battery

- over voltage protection terminal for phone or modem line

-  shutdown software for Windows 95/98/NT/2000/XP, Linux and Novell system software



Art.-no. : 4370420.xxx

Technical Data

nominal input voltage 230 V AC (selectable 220, 230, 240 V)
input frequency range 50 Hz or 60 Hz automatic recognition
output voltage 230 V AC (selectable 220, 230, 240 V)
waveform sinusoidal

rating and back-up time of the proSAFE 800 - 2000 VA models

rating 800 VA 640 Watt
back-up time 8 min. at 100 % load 19 minutes at 50 % load
dimensions (H x W x D) 247 x 120 x 443 mm
weight 10,5 kg
rating 1100 VA 880 Watt
back-up time 6 minutes at 100 % load 15 minutes at 50 % load
dimensions (H x W x D) 247 x 120 x 443 mm
weight 11,3 kg
rating 1500 VA 1200 Watt
back-up time 8 minutes at 100 % load 19 minutes at 50 % load
dimensions (H x W x D) 247 x 120 x 443 mm
weight 17,5 kg
rating 2000 VA 1600 Watt
back-up time 6 minutes at 100 % load 15 minutes at 50 % load
dimensions (H x W x D) 247 x 120 x 443 mm
weight 18,5 kg
