Technical Data
| nominal input voltage | 220 / 230 / 240 V AC |
| input frequency range | 50 Hz ± 5% / 60 Hz ± 5% |
| output voltage | 230 V (umschaltbar auf 220 oder 240 V) |

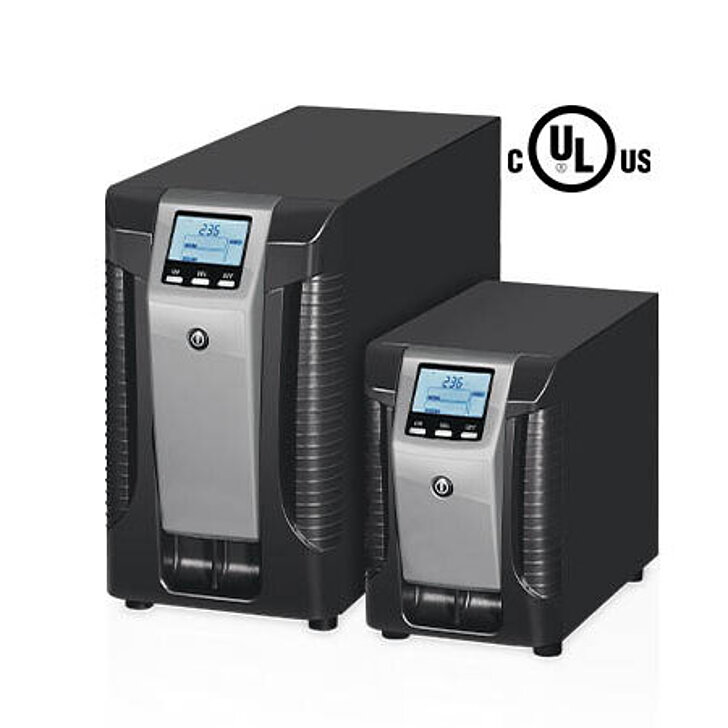

Rating and back-up time of the proTECTO models
proTECTO 700-6
| rating | 700 VA | 630 Watt |
|---|---|---|
| back-up time | 6 minutes at 100 % load | 15 minutes at 50 % löad |
proTECTO 1000-7
| rating | 1000 VA | 630 Watt |
|---|---|---|
| back-up time | 7 minutes at 100 % load | 17 minutes at 50 % löad |
proTECTO 1000 ER
| rating | 1000 VA | 900 Watt |
|---|---|---|
| back-up time | without battery |
proTECTO 1500-5
| rating | 1500 VA | 1350 Watt |
|---|---|---|
| back-up time | 6 minutes at 100 % load | 15 minutes at 50 % löad |
proTECTO 2200-6
| rating | 2200 VA | 1980 Watt |
| back-up time | 6 minutes at 100 % load | 16 minutes at 50 % löad |
proTECTO 2200 ER
| rating | 2200 VA | 1980 Watt |
| back-up time | without battery |
proTECTO 3000
| rating | 3000 VA | 2700 Watt |
| back-up time | 5 minutes at 100 % load | 15 minutes at 50 % löad |
proTECTO 3000 ER
| rating | 3000 VA | 2700 Watt |
| back-up time | without battery |
