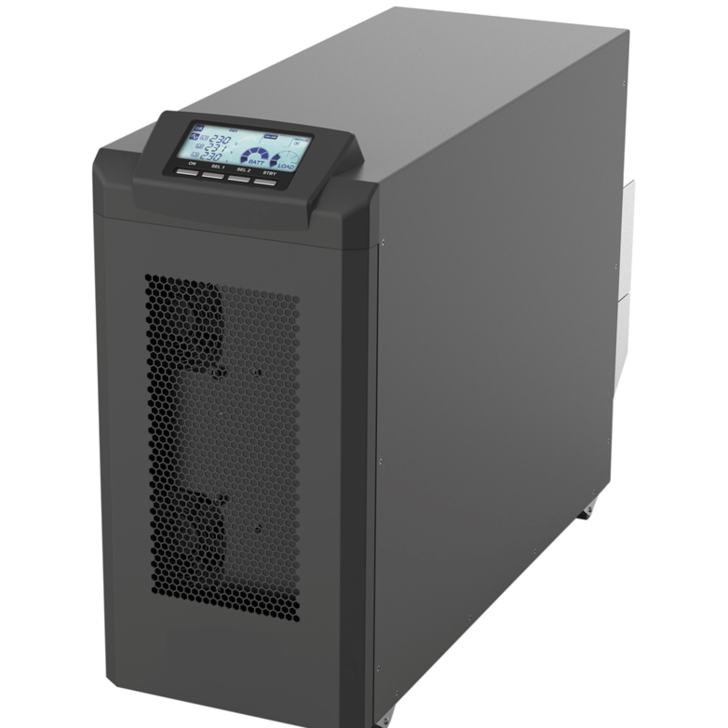

proTECTO i 5000 - 10000

Online UPS system (Typ VFI-SS-111 according to DIN-EN 62040-3)



These UPS systems of the latest generation can be used very variably,

- low space requirement

- Operation of up to 3 systems in parallel possible

- Hot-swap", battery replacement during operation possible

- At the output they have connection terminals and

   2 Energy-Share sockets, which can be programmed separately

- 1 card slot

- 2 serial interfaces (RS232 and USB)

- Incl. shutdown software for all modern Windows systems

  incl. server versions, Mac and Linux systems

  as well as VMware and Hyper-V virtualisation platforms

The 5 and 6 kVA models are 1/1-phase.
The mains connection of the 8 and 10 kVA models can be either 3-phase or 1-phase.

Art.-no. : 4370411.502

Technical Data

nominal input voltage 220 / 230 / 240 V AC
input frequency range 45 - 65 Hz
output voltage selectable: 220 / 230 / 240

Rating and back-up time of the proTECTO i models

rating 5000 VA 5000 Watt
back-up time 22 minutes at 100 % load 47 minutes at 50 % löad
rating 5000 VA 5000 Watt
back-up time 8 minutes at 100 % load 16 minutes at 50 % löad
rating 6000 VA 6000 Watt
back-up time without battery
rating 6000 VA 6000 Watt
back-up time 6 minutes at 100 % load 16 minutes at 50 % löad
rating 8000 VA 8000 Watt
back-up time 7 minutes at 100 % load 17 minutes at 50 % löad
rating 10000 VA 10000 Watt
back-up time 7 minutes at 100 % load 19 minutes at 50 % löad
rating 10000 VA 10000 Watt
back-up time without battery
